ENGINE VALVES

ENGINE VALVES

Overview

Our engine valve withstands harsh operating conditions of hot gases and high temperatures and delivers more than expected performance time & again. This is achieved as our valves are made of the finest alloy steel which helps it to remain stable under extreme working conditions. We manufacture both intake and exhaust valves. The function of the intake valve is to allow the fuel into the combustion chamber and the function of exhaust valve is to prevent the build up of carbon. Our chromium silicon alloy parts are resilient to heat degeneration and ensure long life tim. Ger in to touch with our sales team today for bulk orders on KISHAN products.

Types of Engine Valves

Technical Details

Size Range of Engine Valves
Size in mm Size in mm
Stem Dia From 5.00 to 13.00
Head Dia From 20.00 to 60.00
Overall Length From 60.00 to 225.00

Production Capacity

2 million pieces per annum

SAE BS JS Wr No. C Si Mn Ni Cr N
SIL 1 EN52 SUH 1 1.4718 0.40 - 30.00 - 0.60 0.60 7.50 -
0.50 3.50 max. max. 9.50
SILXB EN59 1.4747 0.75 - 1.75 - 0.20 - 19.0 - 19.0 - 0.15 -
0.85 2.50 0.60 21.0 21.0 0.20
--- --- SUH11 --- 0.45 - 1.00 - 0.60 7.50 - 7.50 -
0.55 2.00 max. 9.50 9.50
EV-12 21-2N --- 1.4875 0.50 - 0.08 - 1.50 - 19.25 - 19.25 - 0.20
0.60 0.25 2.75 21.50 21.50 0.40
EV-8 21-4N SUH35 1.4871 0.48 - 0.35 3.25 - 20.00 - 20.00 - 0.35 -
0.58 max. 4.50 22.00 22.00 0.45
EV-15 23-8N --- --- 0.28 - 0.50 - 7.00 - 22.00 - 22.00 - 0.25 -
0.38 1.00 9.00 24.00 24.00 0.40
EV-14 21-12N SUH37 --- 0.15 - 1.00 10.00 - 20.50 20.50 0.15 -
0.25 max. 12.00 22.50 22.50 0.30

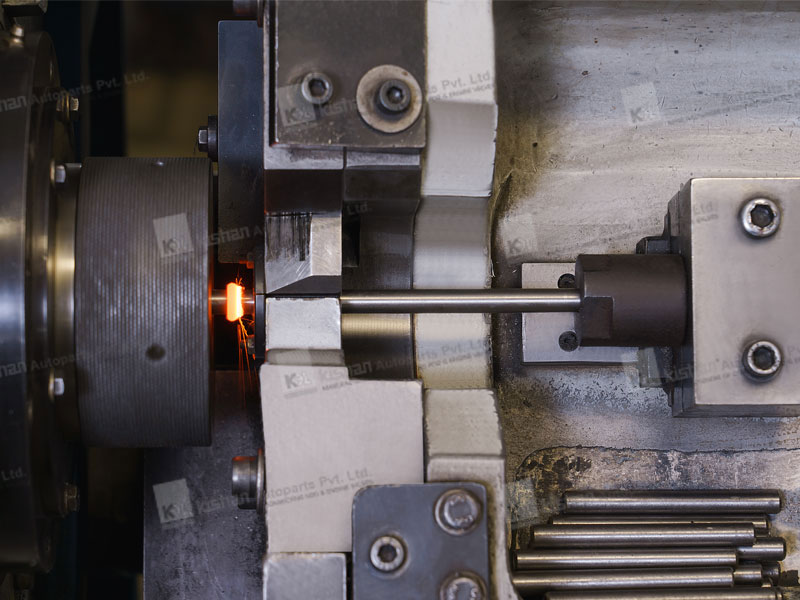

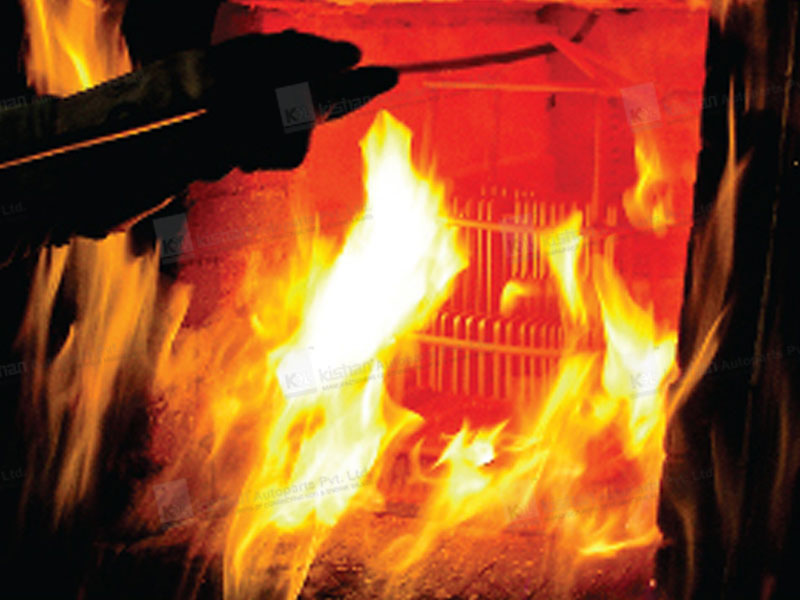

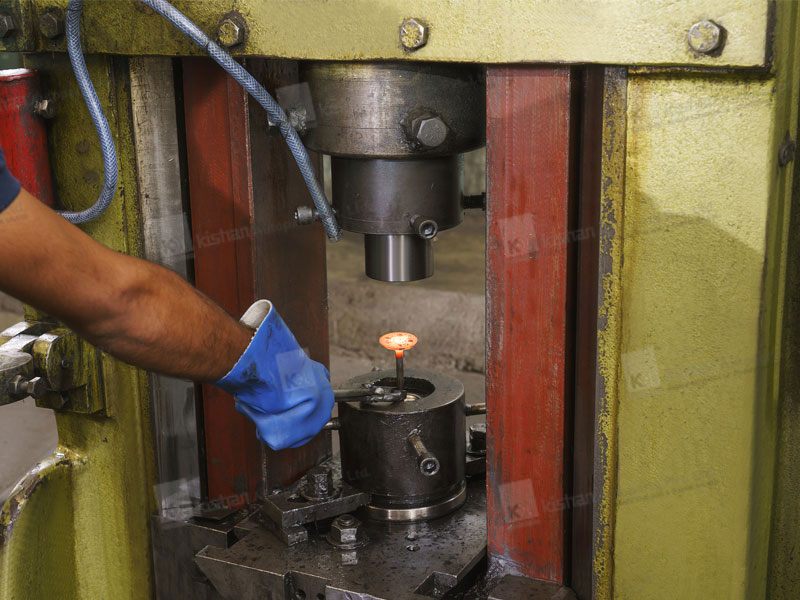

Facilities

Our state-of-the-art production unit consists full range of machinery & instruments for production. Our fully organized activity is backed by the efficient services of engineers, supervisors, quality control inspectors and lab technicians who are experienced and skilled in their respective areas of operations.

Applications
